Reference Modules

Reference Modules offer an economical and effective way to safeguard survey points or monuments. When a surveyor needs to ensure a permanent point of reference, even if the visible monument is disturbed or removed, these modules provide a reliable solution.

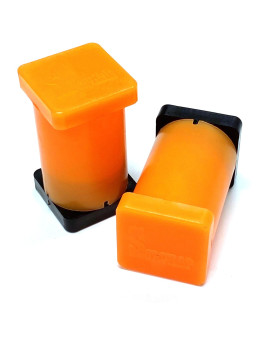

The MR-2 Reference Module is particularly effective when used with flarable base monuments or for marking underground utilities, such as gas, water, power, and telephone lines.

Key Features:

• Placed underground with no visible signs of installation
• Detectable with a magnetic locator up to approximately 6 feet deep
• Corrosion-resistant thermoplastic case
• Grade 8 ceramic permanent magnet
• Virtually indefinite lifespan

Installation Tip:

• Always install vertically, with the black end downward and the color-coded end upward for proper orientation and identification.

SURV-KAP magnetic modules are color-coded for easy identification in the field.

Color & Descriptions

·         Blue: Water

·         Orange: Fire alarm, Railroad, Telephone, Television, Western Union

·         Red: Electric, Street lighting, Traffic signal

·         Yellow: Chemical, Gas, Oil

·         Green: Sewer, Storm drain

·         Fluorescent Blue: Southwest corner

·         Fluorescent Orange: Northwest corner

·         Fluorescent Pink: Southeast corner

·         Silver: Northeast corner

·         Clear: Under monument marker

       Applications: Perfect for permanent survey points, utility markers, and monument preservation, allowing surveyors to maintain accurate reference points over time, regardless of environmental conditions or human interference.
